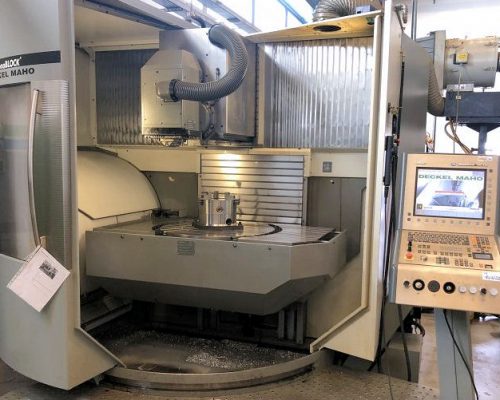

CONSTRUCTOR: DECKEL MAHO
X-AXIS MOVEMENT: 1150 mm
Y-AXIS MOVEMENT: 710 mm
Z-AXIS MOVEMENT: 710 mm
WORK BENCH: 1500×800 mm
ROTATING WORK BENCH : DIAMETER 800 mm
MAX WEIGHT ON WORK BENCH: 800 Kg
SPINDLE ATTACHMENT: HSK A63
SPINDLE SPEED: 18000 rpm
REFRIGERANT THROUGH SPINDLE: 40 bar
CONTROL: HEIDENHAIN iTNC530

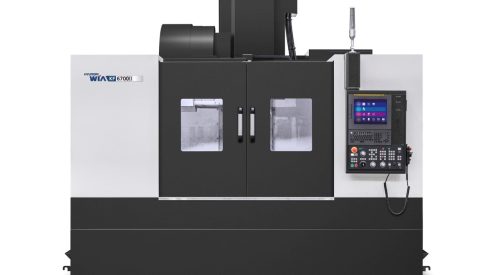

CONSTRUCTOR: HYUNDAI
MODEL: KF6700II
X-AXIS MOVEMENT: 1300 mm
Y-AXIS MOVEMENT: 650 mm
Z-AXIS MOVEMENT: 650 mm
WORK BENCH: 1500×650 mm
MAX WEIGHT ON WORK BENCH: 2000 Kg
SPINDLE ATTACHMENT: ISO 40
SPINDLE SPEED: 8000 rpm
LEHMANN ROTAING TABLE: IV axis in continuous
REFRIGERANT THROUGH SPINDLE: 20 bar
CONTROL: FANUC 0i

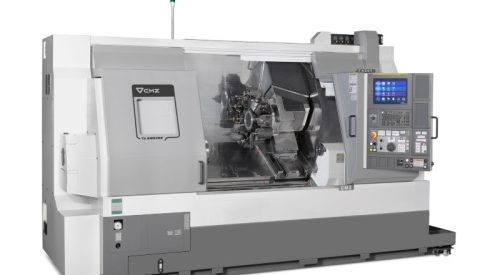

CONSTRUCTOR: CMZ
MODEL: TA-30-1100
Z-AXIS MOVEMENT: 1100 mm
MAX DIAMETER ON CARRIAGE: 600 mm
MAX ROTATING DIAMETER: 460mm
Y-AXIS MOVEMENT: +70/-50mm
TURRET: 12 motorized stations
SPINDLE SPEED: 3500 rpm
THROUGH-SPINDLE COOLANT: 20 bar
CONTROL: FANUC 32i
MAX ROTATING DIAMETER: 680 mm
MAX WORKABLE LENGTH: 1000 mm
MAX WORKABLE DIAMETER: 465 mm
BAR STEP: 76 mm
SPINDLE: 3500 rpm; 42 Kw
X-AXIS MOVEMENT: 300 mm
Z-AXIS MOVEMENT: 1050 mm
FAST STEPS X-Z: 30-30 m/min
TOOLS SET POINT: 12 POS; 4000 rpm;
CONTROL: FANUC 32i
MAX ROTATING DIAMETER: 680 mm
MAX WORKABLE LENGTH: 1000 mm
MAX WORKABLE DIAMETER: 465 mm
BAR STEP: 76 mm
SPINDLE: 3500 rpm; 42 Kw
X-AXIS MOVEMENT: 300 mm
Z-AXIS MOVEMENT: 1050 mm
FAST STEPS X-Z: 30-30 m/min
TOOLS SET POINT: 12 POS; 4000 rpm;
CONTROL: FANUC 21i-TB
MAX ROTATING DIAMETER: 680 mm
MAX WORKABLE LENGTH: 1000 mm
MAX WORKABLE DIAMETER: 465 mm
BAR STEP: 76 mm
SPINDLE: 3500 rpm; 42 Kw
X-AXIS MOVEMENT: 300 mm
Z-AXIS MOVEMENT: 1050 mm
FAST STEPS X-Z: 30-30 m/min
TOOLS SET POINT: 12 POS; 4000 rpm;
CONTROL: FANUC 21i-TB
ACCESSORIES: Hydraulic latch
MAX ROTATING DIAMETER: 1050 mm
MAX WORKABLE LENGTH: 1500 mm
MAX WORKABLE DIAMETER: 960 mm
SPINDLE HOLE: 206 mm
SPINDLE ASA 15” A2 AUTOBLOK Ø 450mm: 1200 rpm 2 gamme 60 Kw
X-AXIS MOVEMENT: 600 mm
Y-AXIS MOVEMENT: 1850 mm
MOTORIZED TURRET: 12 POS; 4000 rpm; 3,7 Kw
CONTROL: SIEMENS 810T
ACCESSORIES: Tailstock C.M. 5

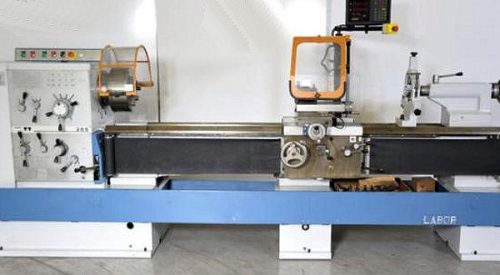

DISTANCE BETWEEN POINTS: 1500 mm
HEIGHT ON THE WORK BENCH: 255 mm
TURNING DIAMETER ON THE WORK BENCH: 740 mm
TURNING DIAMETER ON TRANSVERSAL SLIDE: 328 mm
LENGTH OF THE WORK BENCH: 360 mm
SPINDLE HOLE DIAMETER: 77 mm
SPINDLE SPEED: 1500 rpm, 12Kw
TOOLS TURRET: MANUALE
TAILSTOCK CONE: Morse 5
MAX ROTATING DIAMETER: 700 mm
MAX WORKABLE LENGTH: 1500 mm
MAX WORKABLE DIAMETER: 505 mm
BAR STEP: 76 mm
SPINDLE: 2000 rpm
X-AXIS MOVEMENT: 3000 mm
Z-AXIS MOVEMENT: 1500 mm
TAILSTOCK: Morse 5
LUNETTE: Max Ø 160

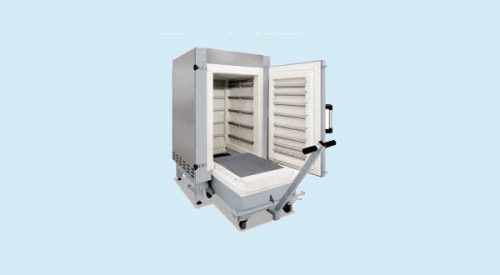

THERMAL DISTENSION OVEN
CONSTRUCTOR: NABERTHERM Gmbh
MODEL: W 1000/G
WORKING DIMENSIONS: 800x1600x800
POWER: 36 kW
